Product overview

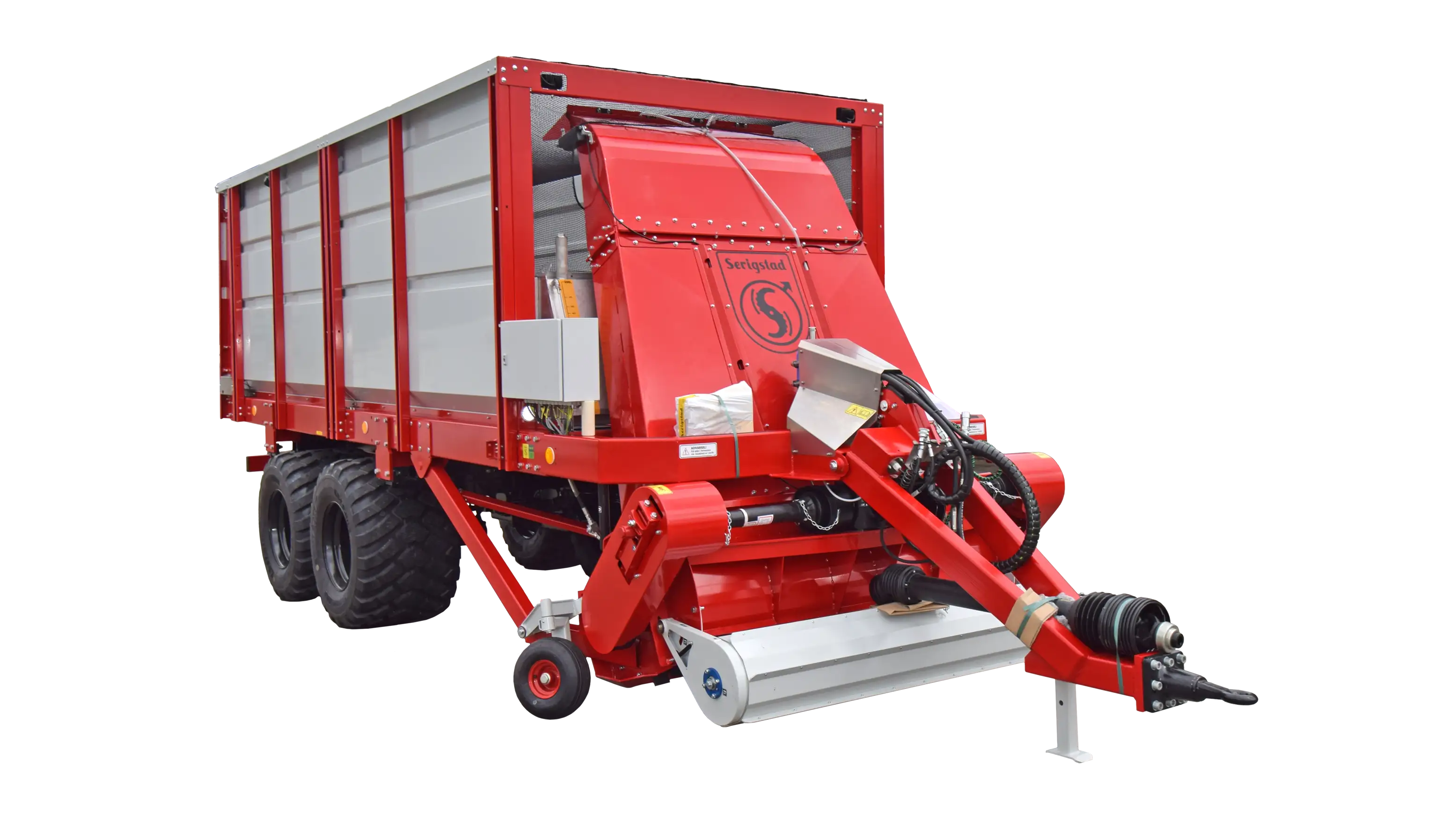

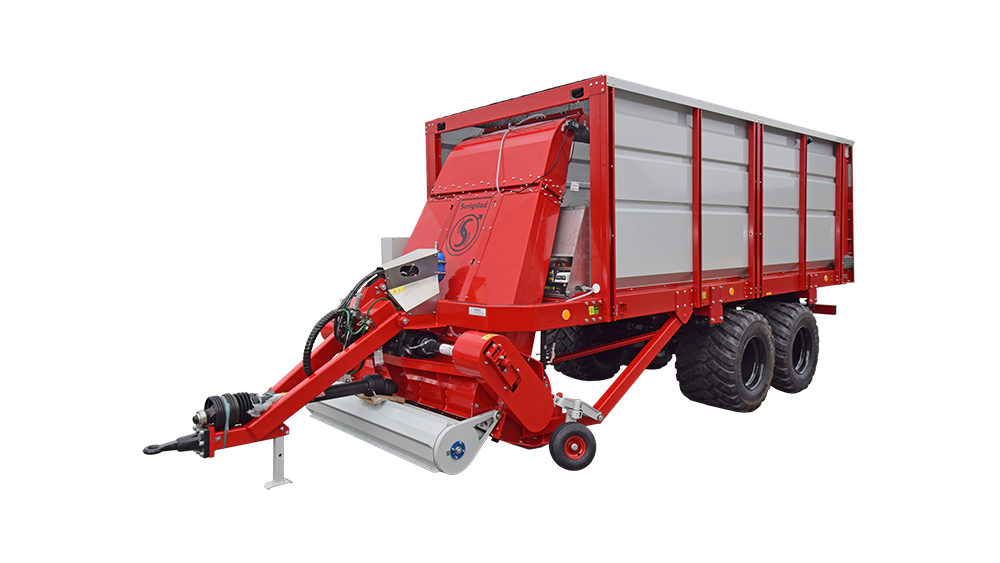

Serigstad presents our new Føniks loader wagon, based on the MK1340 and FS134. This further development combines modern requirements with long-term reliability, and is designed to meet the farmer’s need for flexibility, efficiency, and high feed quality.
Efficient and reliable forage harvesting
The loader wagon is designed as a one-person harvesting system, providing full independence during the haymaking process. With an average packing density that is 30% higher than comparable machines, the number of loads and working hours is reduced, while forage quality and preservation are significantly improved. This contributes to increased animal welfare, higher production, and better profitability.
Specifications
- Volume: 25.4 m³
- Loading capacity: 33 m³
- Internal dimensions: Length 5,700 mm, Width 2,350 mm, Height 1,900 mm
- External dimensions: Length 8,600 mm, Width 2,550 mm, Height 3,300 mm
- Empty weight: 5,300 kg
- Permitted total weight: 15,000 kg
- Maximum speed: 40 km/h
Benefits for the farmer
- One-person harvesting system
- Unique forage handling and up to 30% higher packing density, providing the best conditions for high feed quality
- More per load reduces working hours, fuel consumption, and driving on roads and cultivated land
- Proven and well-known technology with easy maintenance and high reliability

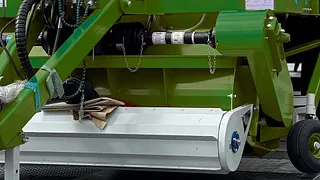

- Hardox wear plates and reversible counter knives ensure long service life and low maintenance costs
- Work lights around the entire wagon increase safety under all conditions
Multicutter
| Length, external | 8 600 mm |
| Width, external | 2 550 mm |
| Height, external | 3300 mm |
| Width, internal | 2 350 mm |
| Length, internal | 5 700 mm |
| Height, internal | 1 900 mm |
| Volume | 25,4 m³ |
| Loading capacity | 33 m³ |
| Working width | 1 950 mm |
| Stacked width | 9 m |
| Empty weight | 5 300 kg |
| Permitted total weight | 5 300 kg |
| Tire size | 600-50/22,5 |
| Alternative tire size | 710-45/22,5 (maks bredde 2,75m) |
Maximum speed | 40km/t |
